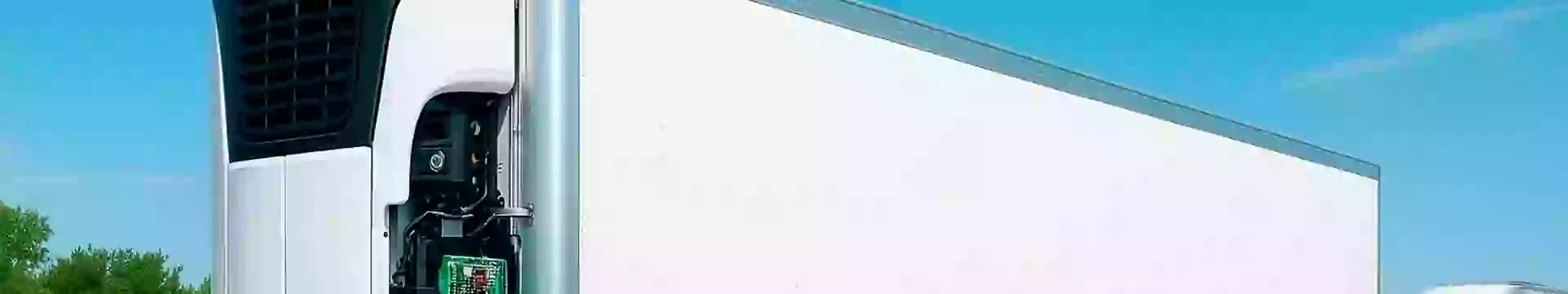

Carrier X4 refrigeration systems—particularly the 7500 and 7300 models—underpin most temperature-controlled trailers that run through Illinois logistics corridors. Their diesel-electric architecture and SR4 control logic provide precise thermal regulation, but Chicago’s climate, road salt, and stop-and-go traffic introduce stressors that accelerate predictable failure patterns. This guide aggregates observations from certified technicians who maintain large X4 fleets operating out of Cook County yards. It explains how each failure emerges, why SR4 diagnostics alone can miss root causes, and which mechanical interventions permanently restore performance. The goal is to give fleet managers and owner-operators a blueprint for carrier x4 repair and x4 reefer troubleshooting that keeps trailers compliant with cold-chain commitments.
Regional Operating Envelope and Its Impact on X4 Components
A Chicago-based trailer can leave its yard at 05 : 00 in 18 °F air, idle in downtown congestion at 92 °F road temperatures, and finish the day coated in brine spray from I-90. Those swings compress and expand compressor valve plates, corrode ground straps, and thicken biodiesel blends in fuel filters. Because SR4 alarm thresholds assume stable ambient conditions, many faults begin as sub-alarm phenomena: small suction-line drift, intermittent voltage sag, or brief clutch slip. Successful x4 reefer unit service depends on recreating real-road conditions during diagnostics—static bay checks miss dynamic stress that only manifests under load and vibration.
Progressive Cooling Loss Without SR4 Alarms
The most common customer complaint is a slow rise in return-air temperature during a northbound haul despite SR4 showing normal cycle counts. Field data logging reveals that system compression ratio collapses in long high-speed runs, but static dock tests show suction pressure within spec. Chicago technicians attach wireless transducers, drive a thirty-mile loop on I-55, and compare discharge superheat against Carrier tables. A decline of more than ten percentage points indicates internal bypass across worn reed valves or plate fatigue. Corrective action involves recovering refrigerant, inspecting oil for metallic flake, replating or replacing the compressor, and charging by weight at an indoor ambient of 70 °F for repeatable accuracy. After reassembly the unit completes a dual-speed verification: fast cool-down followed by economode hold.
Fan-Clutch Engagement Fade in Transitional Seasons
Spring and autumn produce thousands of clutch cycles per week. Magnetic faces glaze, micro-pit, and lose holding force precisely when coil static pressure peaks. Because SR4 detects voltage rather than torque, the controller reports no fault. Technicians verify engagement by paint-marking the fan hub and measuring slip with a strobe at idle and 2000 rpm. If slip exceeds five percent or face gap is greater than 0.9 mm, the clutch is replaced. To prevent premature glazing, the new clutch is bedded through sequenced cool-heat-cool operation. Harness connectors are back-probed; resistance above 50 mΩ predicts future intermittent faults once winter corrosion sets in.
Voltage Instability During High Electrical Load
Alternator degradation in X4 units rarely triggers Code 84 until output falls below 12.8 V under sustained load, yet SR4 resets start at 13.1 V dips. Chicago technicians apply a 100-amp electronic load, engage the fan, fuel pump, and heater taps simultaneously, and log voltage sag. A drop below 13.2 V for more than five seconds forecasts mid-route resets. Replacing the alternator requires belt tension at 30 N·m and ground-strap resurfacing to bare metal to combat salt-induced resistance creep. Validation entails a fifteen-minute heat-soak with live voltage logging: the minimum must remain above 13.5 V. Fleets that adopt this threshold report fifty-percent fewer controller resets during summer produce runs.
Fuel-System Airlocks in Sub-Zero Conditions
The rapid filter changes common in winter yards introduce air pockets that surface only when aerated fuel reaches the high-pressure pump at highway speed. Engines prime, drive five miles, then stall, mimicking injector failure. The permanent remedy is a staged prime: manual pumping until bubble-free flow, timed idle until return-line turbulence ceases, and ultrasonic leak checks on filter-head O-rings that shrink at 10 °F. Repeat incidents prompt installation of winter-rated filters with silicone gaskets and insulated bowls. Cross-fleet data compiled by Chicago service centers shows a thirty-percent reduction in emergency roadside calls after adopting this winterization protocol.
Sensor Drift and Invisible Control Errors
Return-air and coil thermistors drift as epoxy seals absorb moisture and salt. Resistance shifts under ten percent do not breach SR4 thresholds, yet they distort temperature feedback, causing short cycles and over-cool penalties at receiving docks. Diagnosis requires bench-testing sensors at three reference points (32 °F, 75 °F, 120 °F) against Carrier resistance curves. Deviations beyond five percent mandate replacement. New sensors are epoxy-sealed and rewired with marine-grade heat-shrink to block future salt ingress. Finally, SR4 calibration offsets are reset; neglecting this step negates the hardware fix and leaves the unit in the same fault loop.
Integrated Quarterly Service Strategy
Chicago fleets minimizing downtime employ a consolidated maintenance window: compressor inspection, clutch measurement, voltage stress-test, fuel integrity check, and SR4 firmware parity verification every March and November. Aligning these tasks to seasonal inflection points prevents cascading failures when the first cold front or heat wave hits. Data from three major regional carriers indicates a forty-percent drop in road calls and a twenty-two-percent increase in average compressor life when this schedule is maintained across units exceeding 7000 engine hours.
Symptom Cluster for Fast Field Triage
- Cooling drift + prolonged compressor runtime, suction pressure < 30 psi, no code → suspect valve-plate bypass.
- SR4 reset + fan engagement surge, voltage dip 13.0–13.2 V → alternator rotor wear.
- High idle temp + clutch voltage good, hub slip ≥ 5 % → magnetic face glaze.
- Stall after filter change + air bubbles in clear line → prime sequence incomplete.
- Over-cool claim + normal pressures, no codes → thermistor drift.
Full-Cycle Verification Checklist
- Record baseline suction/discharge, amperage draw, and return-air at startup, mid-run, shutdown.
- Execute forced cool, then forced heat, confirming fan RPM, clutch slip, superheat delta, and voltage floor ≥ 13.5 V.
Final Service Outcome
Carrier X4 units reward disciplined, environment-aware maintenance. Chicago’s freeze-thaw seasons, salt exposure, and traffic patterns expose weaknesses in compression efficiency, clutch magnet integrity, alternator capacity, diesel filtration, and thermal feedback loops—fault vectors that often evade controller alarms. Adopting the diagnostic and repair methods detailed above converts reactive part swapping into preventive asset management, reduces spoilage claims, and sustains precise temperature control across the Midwest distribution grid. By integrating quarterly service windows with dynamic data logging and component-specific thresholds, fleets position their X4 assets for maximum uptime and compliance—key factors in winning and retaining refrigerated freight contracts.
