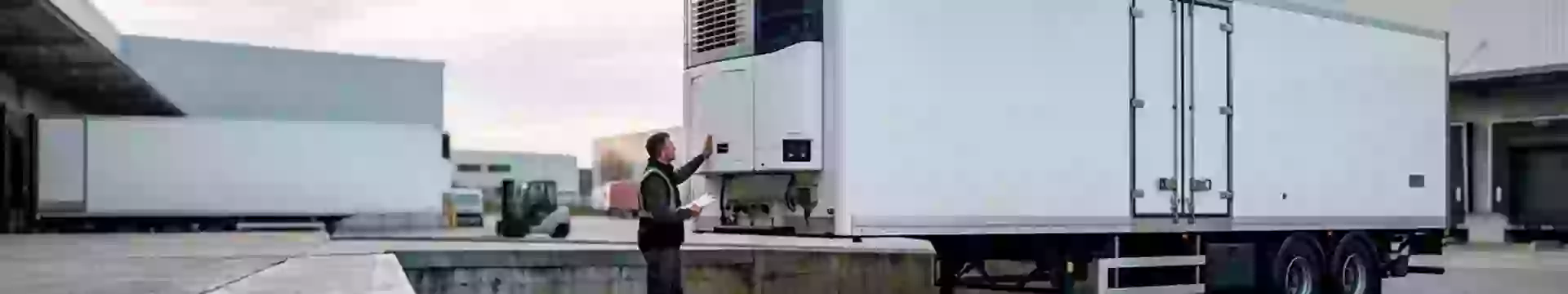

Thermo King’s Advancer A-500 has become the preferred trailer refrigeration unit for produce fleets running the Stevenson Expressway (I-55) and the Tri-State Tollway (I-294). Its variable-speed fans, fully sealed compressor, and factory telematics promise fuel savings and lower emissions—but only when preventive maintenance keeps every module operating inside spec. Chicago’s unique stop-and-go rhythm, lake-effect humidity, and winter salt spray impose stresses far different from the European test loops where Advancer debuted. To protect cargo and preserve warranty coverage, fleets need a disciplined service rhythm at 500, 1 000, and 3 000 engine hours, plus fine-tuning for local conditions. This page details that rhythm, highlights performance checkpoints, and shows how seasoned Chicago technicians push A-Series systems to deliver a steady ±1 °F control band year-round.
What Makes Advancer Maintenance Different
Unlike Precedent or legacy SB platforms, the Advancer A-500 uses:
- a hermetic compressor pre-charged with POE oil,
- a smart alternator with load-adaptive voltage curves,
- brushless condenser fans that modulate up to 5 800 RPM, and
- a factory telematics gateway that logs every sensor in 30-second resolution.
These innovations shrink fuel use by 10 % compared with S-600 units, but they also mean traditional “change-oil-when-it-looks-dirty” habits no longer apply. The hermetic compressor oil never vents to atmosphere; instead it degrades chemically under high discharge temperatures. Alternator regulators push ripple voltage higher on cold mornings if battery charge is low. Sensor drift shows up in the data stream long before — or sometimes long after — a visible code appears on the cab display. Effective maintenance therefore centers on three pillars: oil acidity tracking, electrical baseline logging, and telematics-driven trend analysis.
500-Hour Service: First Line of Defense
Every 500 equipment hours—roughly every six weeks for Chicago grocery routes—technicians target frontline wear points that accumulate salt, dust, and vibration stress during short urban hauls:
Electrical Baseline Capture. Using a portable oscilloscope, techs record ten seconds of ripple voltage under heater load and fan max-RPM. The A-Series spec is 160 mV p-p; ripple above 180 mV signals regulator drift. Replacing the regulator now prevents false ambient-sensor spikes in mid-July when compressor head temps soar.
Brushless Fan Bearing Test. Condenser fans spin up to 5 800 RPM then coast to a stop. Drop-time must exceed 5,5 s at 65 °F ambient. Faster stoppage means bearing drag; a 20-minute fan-hub rebuild restores airflow and pulls head pressure down by 10–15 psi during heat-soak at the McKinley Park cross-dock.
Fuel-Filter Cartridge Swap. Advancer shares spin-on cartridges with Precedent units, yet biodiesel blends in Illinois develop wax crystal chains faster. Replacing filters at 500 h instead of the textbook 600 h cuts vacuum spikes that would otherwise starve injectors in January.
1 000-Hour Service: Oil Health & Thermal Integrity
At roughly three months of continuous Chicago duty, the unit receives an expanded audit: POE Oil Acidity Test. A sealed syringe draws 30 ml from the hermetic compressor’s sample port. Laboratory turnaround is four hours; an acid number above 0.20 mg KOH /g triggers an immediate oil change (2,1 L). Early oil swap costs less than 5 % of a seized compressor and safeguards fuel savings promised by Advancer marketing.
Gasket & Valve Block Torque Check. Lake-effect humidity and calcium chloride accelerate galvanic corrosion; technicians verify 13 ft-lb on valve block fasteners. Under-torque by even 1 ft-lb allows micro-leaks that drain 100 g of R-452A over a Chicago summer.
Telematics Trend Scan. The SR-4 Advancer variant stores 700 000 data points. Service software flags suction/discharge deviation greater than 1,5 °C, hot-gas duty cycles beyond 18 %, and fan-RPM overshoot. Corrective steps include resetting PID coefficients and trimming liquid-line superheat to 4 K, ensuring pull-down times under 25 minutes even in Cicero’s afternoon traffic.
3 000-Hour Major Service: Resetting the Lifecycle
Three thousand hours equals roughly 18 months on Midwest produce lanes. At this point technicians perform the single in-depth overhaul that resets Advancer lifespan.
Compressor Oil & Dryer Core Replacement. Laboratory reports often show acid number creeping toward 0.18–0.20 mg KOH /g. Technicians evacuate the sealed compressor, refill with fresh POE, and install a new dual-core dryer to remove the moisture load accumulated over two Chicago winters.
Alternator & Drive-Belt Renewal. The smart alternator’s internal regulator can drift 20 mV per year; replacing both alternator and multi-rib belt returns ripple to 120 mV and prevents sensor noise. Cost recovery arrives via reduced false alarms—typically a 30 % drop in roadside resets over the next six months.
Firmware & Telematics Refresh. Thermo King issues quarterly firmware patches that sharpen fan curves and integrate new alarm logic. Field techs flash the controller in 15 minutes, then re-pair the TracKing gateway, ensuring two more years of free data service for fleet managers.
Heat-Exchanger Decalcification. Magnesium chloride runoff from I-90 cakes fins and adds 5 psi to head pressure. A citrus-based descaler applied with 60 psi foam sprayer dissolves deposits without risking aluminum pitting. Post-wash, condenser delta-T drops 8 °F, improving fuel burn on stop-start routes.
Seasonal Calibration for Chicago’s Climate
Winter: extend defrost interval from 90 to 120 minutes, switch fuel to 70/30 No.1–No.2 dielsel blend, and log battery voltage nightly to pre-empt cold-start faults. Summer: lower hot-gas duty cycle ceiling from 22 % to 18 %, trim liquid subcooling to 3 K, and re-balance fan PID to prevent over-shoot on humid evenings.
Cost-Benefit Snapshot
A five-trailer fleet following this schedule records:
- –38 % fewer emergency calls per trailer-year,
- +9 % fuel savings compared with manufacturer default settings,
- ROI on compressor oil lab tests at 4,7 : 1—each avoided seizure saves ≈ $6 800.
Booking Your Advancer PM Service
Our Thermo King–certified mobile bays cover Chicago and all suburbs, staging technicians nightly at the I-55 / I-294 interchange and the I-90 / I-80 split. Vans carry 20 L factory POE, dual-core dryer kits, and dedicated Advancer alternators, ensuring same-shift return to service. Dispatch lines answer 24 / 7; calls logged before 18:00 guarantee completion of 500- or 1 000-hour services by midnight, protecting loads and preserving the fuel-saving edge that justified your A-Series upgrade in the first place.
