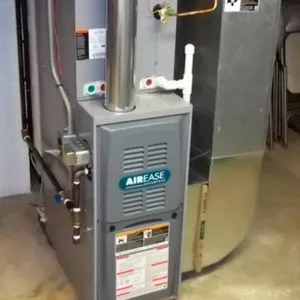

Furnace installation in Chicago sets the baseline for comfort, safety, and operating cost through long winters. Local housing ranges from tight mechanical rooms to open basements, so each project needs precise sizing, correct venting, and verified airflow. Professional furnace installation aligns BTU capacity with the building load, keeps static pressure within limits for quiet delivery, and documents temperature rise so the heat exchanger stays within the manufacturer band. This page is the core category for furnace installation in Chicago and focuses on service delivery, code compliance, commissioning, and homeowner outcomes.
Core principles of furnace installation
A successful installation starts with matching the furnace to the home. Installers calculate heating load and select BTU output that avoids short cycling in cold snaps and avoids undersizing on windy nights. AFUE means Annual Fuel Utilization Efficiency and indicates how much fuel becomes usable heat indoors; higher AFUE models produce the same comfort with less fuel. The blower must move enough air in CFM through the return and supply to keep the system efficient and quiet. Static pressure is the resistance the blower sees in the ducts and filters; high pressure raises noise and can overheat components, while low pressure reduces room delivery.

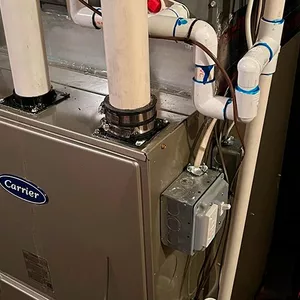

Venting and condensate handling depend on furnace efficiency. High efficiency installations use sealed intake and exhaust with properly sloped PVC back to the cabinet and a routed condensate drain. A condensate trap keeps flue gases from entering the drain, and a neutralizer may be added to protect piping. Standard efficiency units typically use a lined chimney or B vent. The combustion sequence relies on an inducer to establish draft, an igniter to light the burners, and a flame sensor to confirm safe combustion. These parts are checked during startup so the furnace lights reliably in low temperatures.

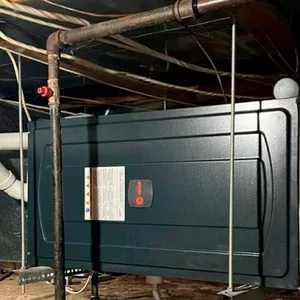

Configuration matters in Chicago housing. Upflow furnaces in basements send warm air up through a supply plenum. Downflow units serve closets where ducts are below the floor. Horizontal furnaces fit attics or crawl spaces and need continuous support and secondary drain protection where applicable. Placement controls service access, filter changes, and noise; a good design keeps clearances and straight duct transitions so the blower does not work against unnecessary resistance.
Practical scope and quality checks homeowners can expect
Professional furnace installation follows a consistent sequence that produces a code compliant, quiet system. Crews isolate power at a service switch, remove the old unit, and prepare a pad or platform to stabilize the cabinet. Sheet metal transitions connect the furnace to the existing plenum and return drop with sealed seams to control leakage. Electrical connections include a dedicated service disconnect and proper grounding. Gas connections are leak checked before startup. Thermostat wiring is verified so stages and fan control match equipment capability, especially for two stage or modulating models.
High efficiency installations add vent design and condensate routing. PVC runs are supported and pitched to prevent standing water. Terminations outdoors maintain clearances from openings and grade. The condensate line is trapped, secured, and directed to an approved drain or pump. Before the first full heat cycle, technicians measure static pressure at supply and return test ports and set blower speed or ECM airflow targets accordingly. Temperature rise the difference between return and supply is measured after stabilization and compared to the furnace nameplate so the heat exchanger operates inside its designed range.
Homeowners receive a concise orientation at handoff. The installer reviews filter size and direction, how to set the thermostat, and where to find the service switch and breaker. Documentation includes permit details, inspection steps, and a commissioning sheet with airflow and temperature results. These records protect warranty coverage and give future technicians a reliable baseline for maintenance.
Scope of Furnace Installation
Every professional furnace installation includes the essential steps that make the system efficient, safe, and code-compliant. Below are three clear lists that show what’s covered in a standard installation, what isn’t, and what upgrades can be added for better comfort and performance.
Included
- Removal of the old furnace and responsible haul-away
- Placement of the new cabinet on a pad or platform
- Sealed sheet-metal transitions at the plenum and return
- Gas connection, leak check, and startup verification
- Electrical hookup with dedicated service disconnect
- Commissioning with static pressure and temperature rise recorded
Not Included
- Full duct redesign beyond immediate transitions
- Major electrical panel or service upgrades
- Structural carpentry or drywall finishing
- Asbestos or hazardous material abatement
- Chimney masonry or structural repair
Available Add-Ons
- Return-air upsizing to lower static pressure and reduce blower noise
- Media filter rack with sealed filter door
- PVC venting and condensate pump for high-efficiency furnaces
- Whole-home humidifier and thermostat upgrade
- Chimney liner installation when required by code
This structured scope defines the boundary of professional furnace installation service in Chicago and helps homeowners understand what’s included, excluded, and optional within standard installation practices.
Risks safety and Chicago code boundaries
Work inside the cabinet, gas joints, and 120V wiring are not DIY. Homeowners can replace filters, program the thermostat, and visually check clearances, but they should not adjust gas pressure, modify venting, or open electrical compartments. If gas odor is present, shut off power at the service switch, leave the area, and contact a licensed technician and the utility. Carbon monoxide risk rises when venting is incorrect, when returns are starved, or when the heat exchanger runs outside its temperature rise band.
Chicago furnace installation requires a mechanical permit and inspection. Contractors file permits, complete work, and coordinate inspection to verify vent materials, terminations, combustion air, gas shutoff accessibility, electrical service switch, and condensate routing. When replacing a mid efficiency unit with a high efficiency furnace, remaining appliances that use the chimney may need a properly sized liner to maintain draft and prevent condensation damage. Keeping permit and inspection records with the commissioning sheet preserves warranty support and streamlines future real estate transactions.
Safe handoff includes verifying limit circuits and pressure switches, confirming proper ignition and shutdown, and ensuring the blower does not start or stop with a cold blast due to incorrect fan delays. If lockouts or error codes repeat after installation, do not cycle power repeatedly. Power the system down and call a licensed technician so the cause can be diagnosed without stressing components.
Cost and timeline factors for furnace installation
Furnace installation cost varies by scope rather than label. Key drivers include capacity and staging, efficiency level, vent route complexity, and return duct conditions. High efficiency installations add PVC intake and exhaust, termination work, a trap and neutralizer when required, and a potential condensate pump. Mid efficiency replacements may require a chimney liner to support remaining draft for other appliances. Electric furnaces shift cost to electrical capacity and breaker space. Projects that include a media filter rack or return enlargement improve comfort and noise but add materials and labor on install day.
Scheduling reflects logistics. Same day furnace installation can be available when in stock equipment matches the load and permit filing aligns. Standard projects are typically booked within one to two business days during the season. A basement upflow replacement with straightforward venting often completes in a single day, including removal, transitions, startup, and documentation. Attic horizontal placement, tight closet downflow, or return enlargement can extend into a second day to complete sheet metal work and commissioning under steady operating conditions. Utility rebates and manufacturer registration follow installation and do not prevent heating the home once startup is complete.
Financing and rebates help offset the cost of high efficiency equipment. Licensed installers provide written estimates that itemize equipment, labor, venting routes, duct changes, and permit fees. A clear scope prevents add ons later and makes schedule commitments predictable. Owners should file and keep all rebate and registration confirmations with the commissioning sheet for future reference.
Closing summary and next steps

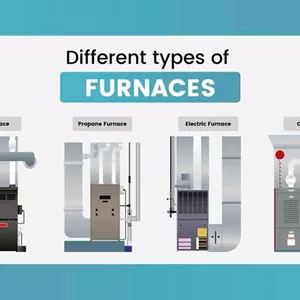

Furnace installation in Chicago succeeds when three elements align correct sizing and airflow, code compliant venting and condensate routing, and documented commissioning. Gas, electric, propane, and oil systems each have routing and control details that affect comfort, noise, and efficiency. A licensed team that measures static pressure, sets blower airflow, and confirms temperature rise delivers steady heat and protects warranty support for years. Plan the project before peak demand so equipment, permitting, and inspection flow without delays.
Prepare clear access to the mechanical space, note your existing filter size and breaker location, and schedule an on site evaluation. If you ever smell gas or see repeated ignition faults, shut the unit off at the service switch and call a licensed technician. For planned work, request a written, itemized estimate, confirm permit handling, and lock an installation window before the next cold front.
